Photo Gallery: Noctuidae: Erebinae: Ulotrichopus
Male genitalia images for dissection
voucher specimen 2015HLK:2151 of Ulotrichopus stertzi (Lepidoptera: Noctuidae:
Erebinae)
Genitalia were dissected and images taken by Hugo L. Kons Jr. with the GT Vision imaging system at the former American Entomological Institute. All structures are the natural three dimensional shape (not slide mounted) except for the juxta/anellus and abdominal cuticle (temporarily slide mounted for imaging).
Adult

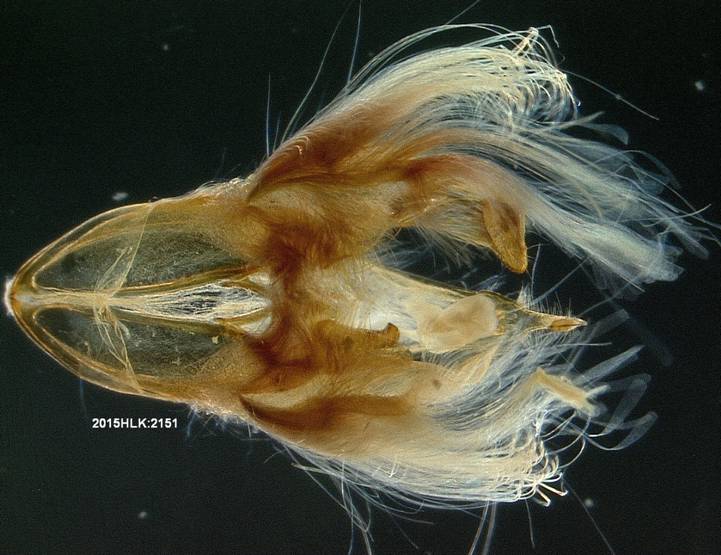

Capsule
(ventral with hairs and scales)

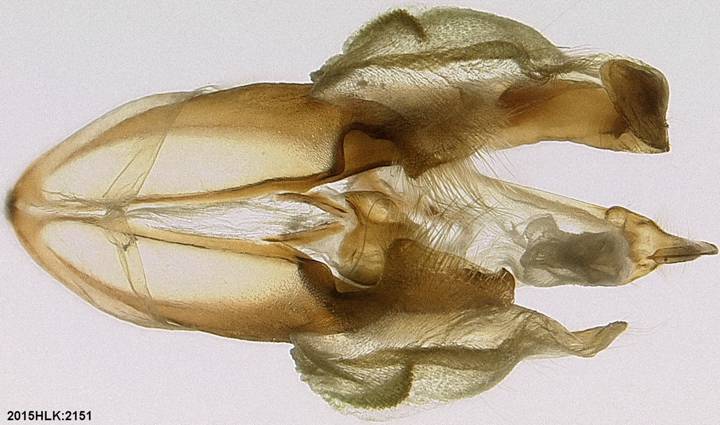

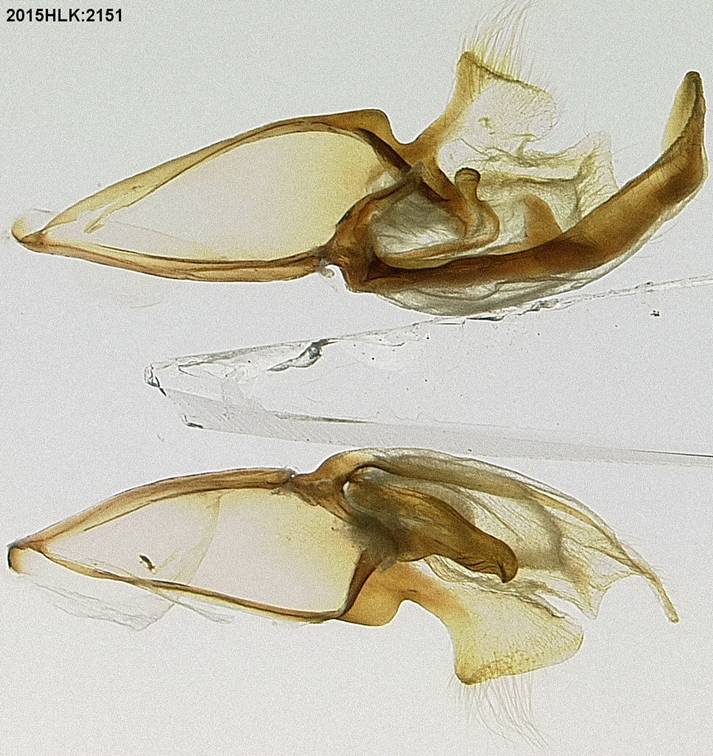

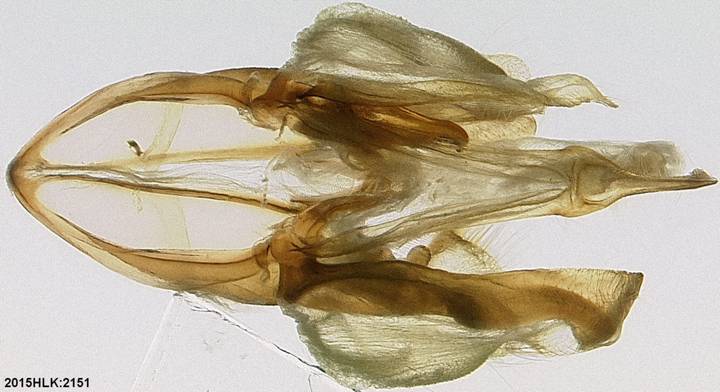

Capsule
(ventral)
Capsule
(dorsal)

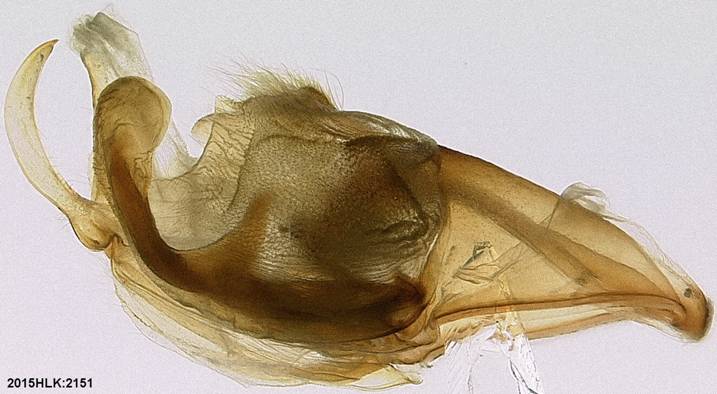

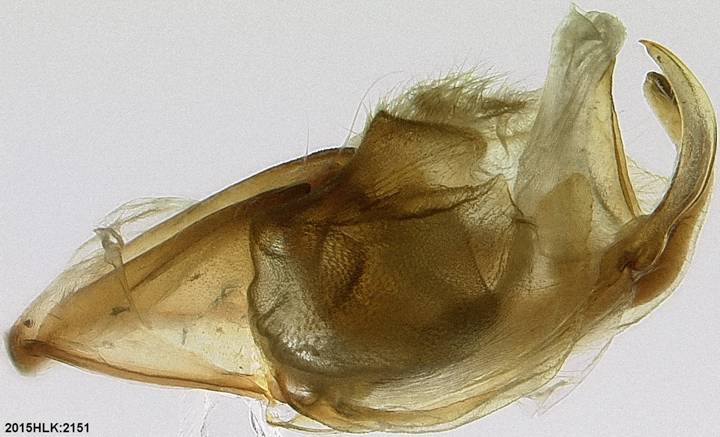

Capsule

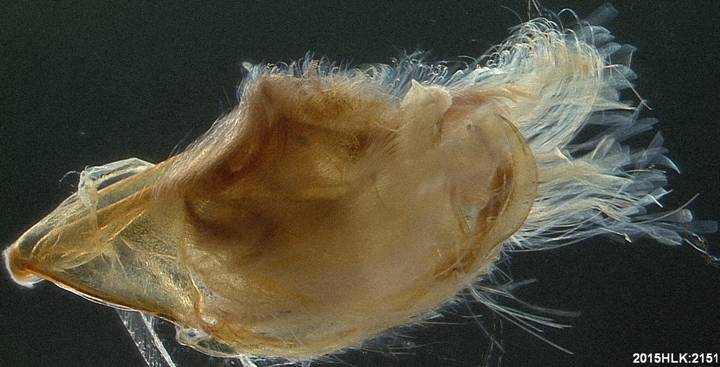

(lateral with hairs and scales)
Capsule
(lateral)

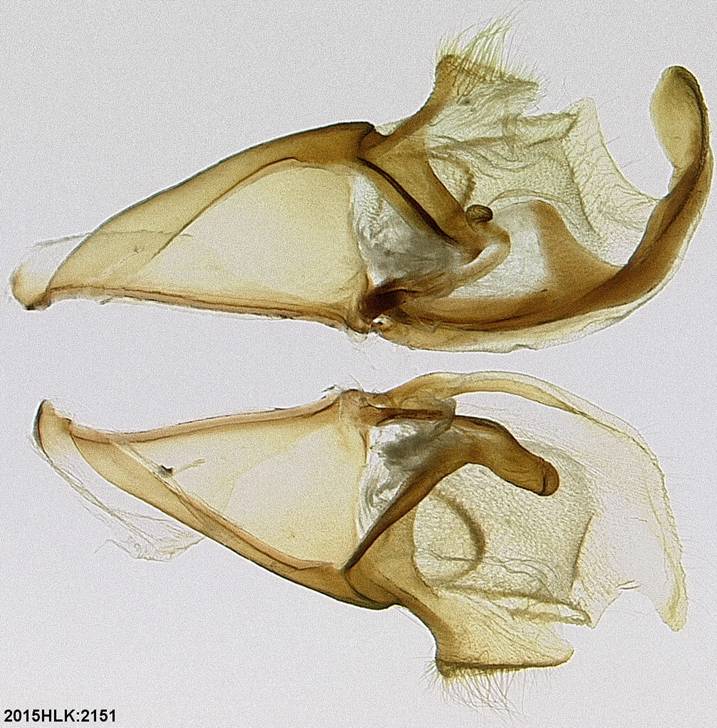

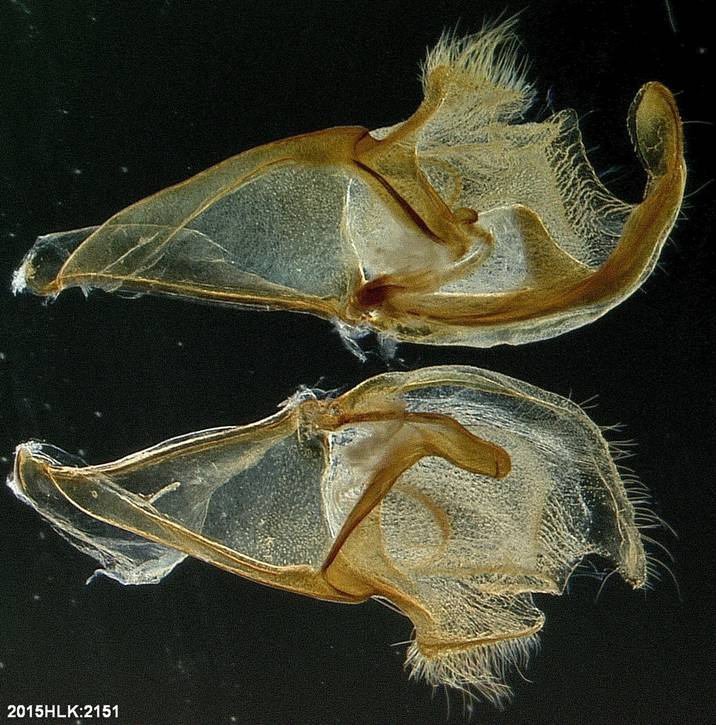

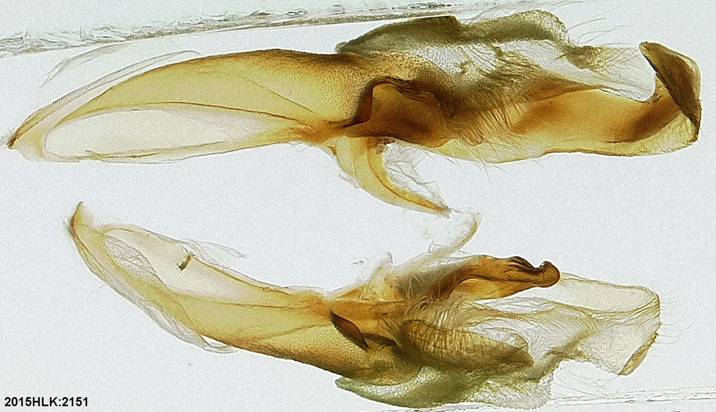

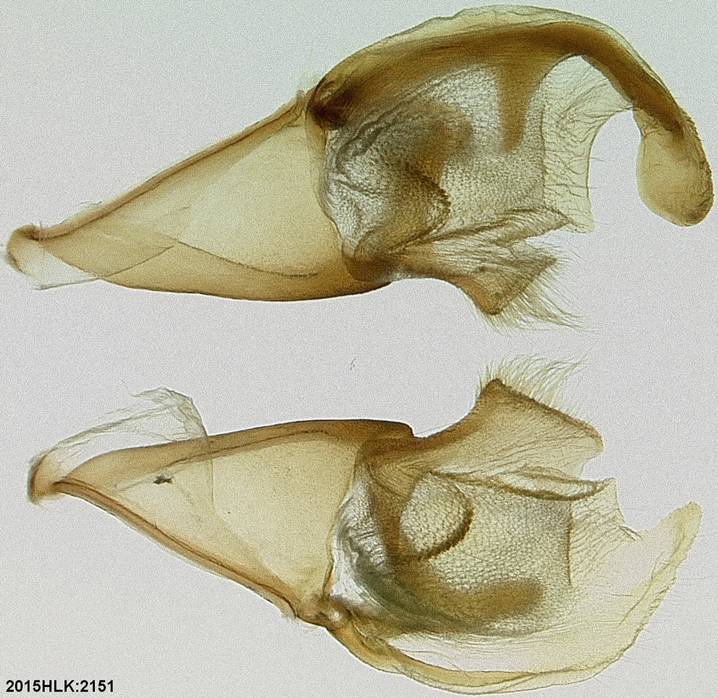

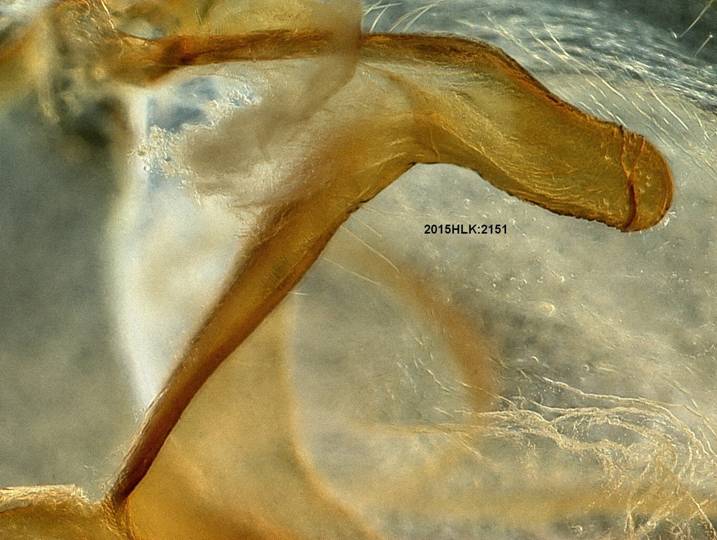

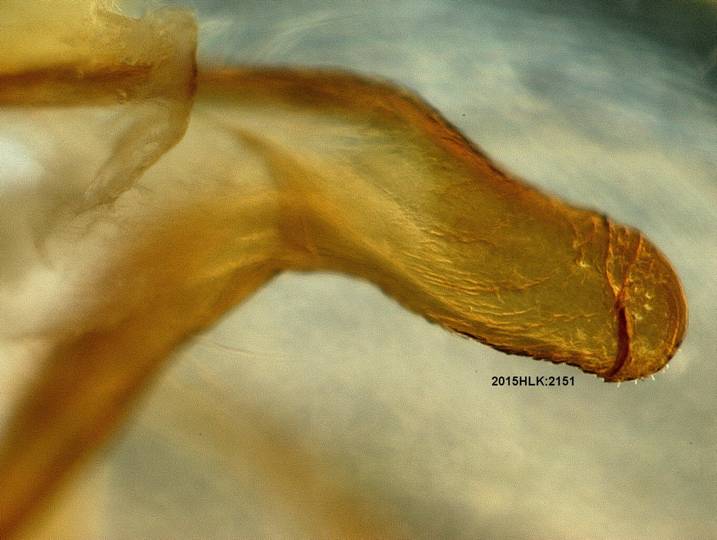

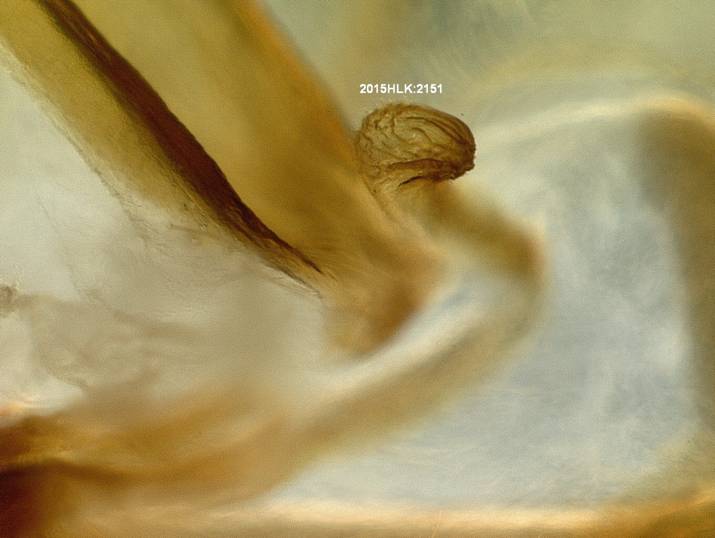

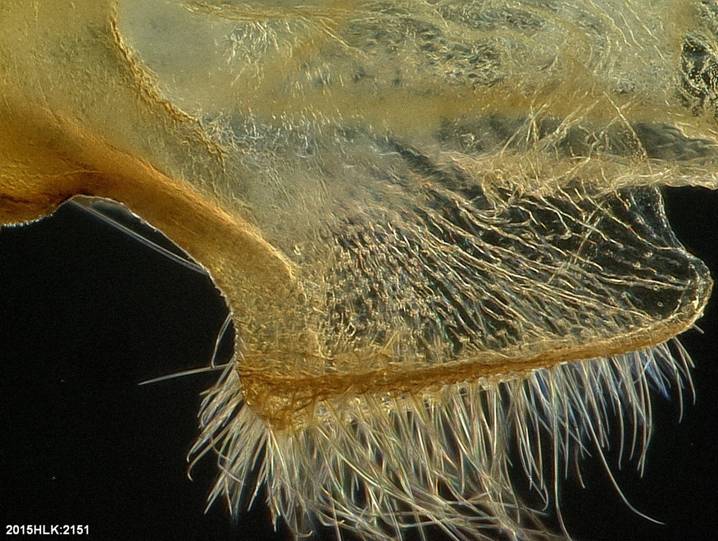

Valvae (inner)
Valvae (outer)

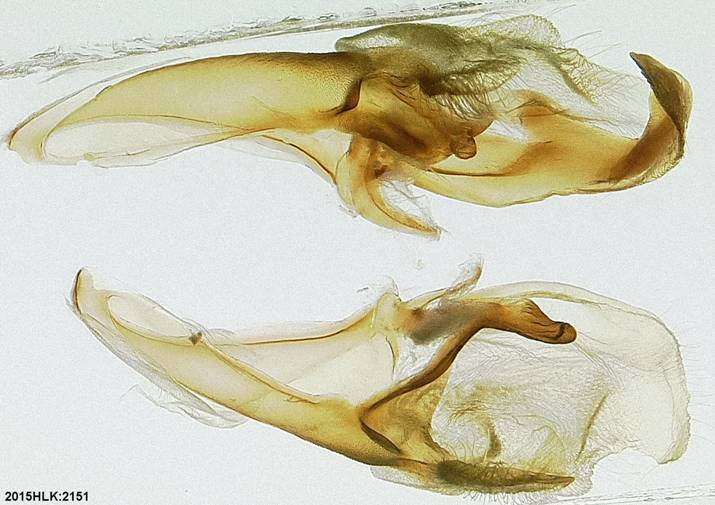

Valvae (ventral)
Valvae (ventral/inner)
Valvae (dorsal)
Valvae (dorsal/inner)

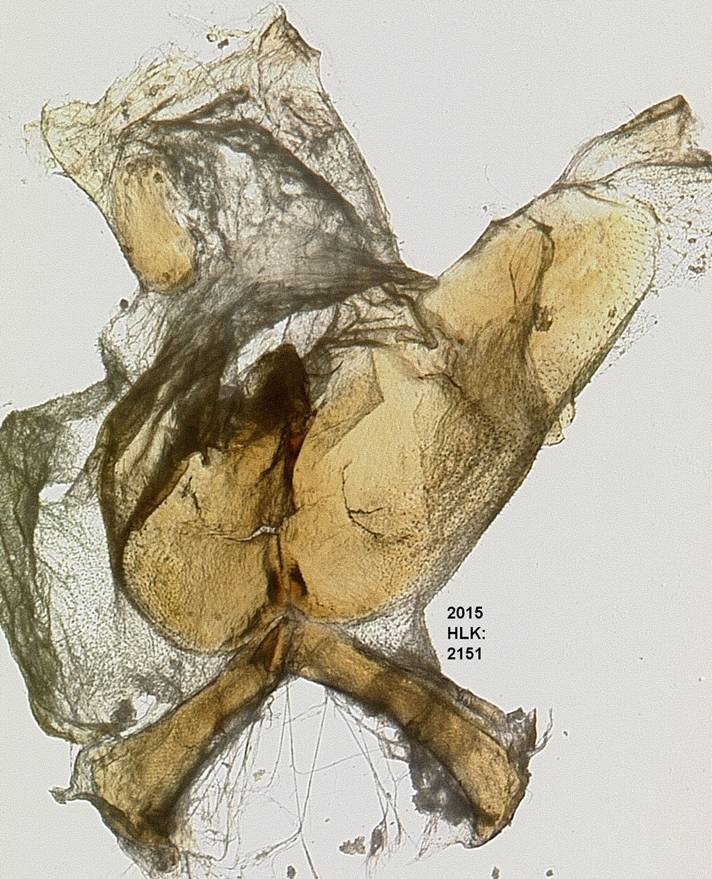

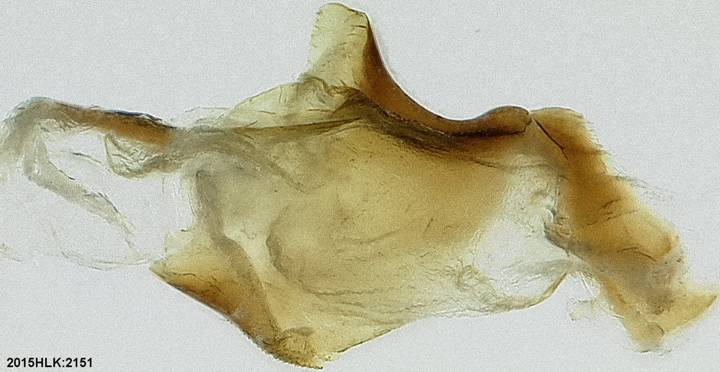

Juxta & Anellus
(ventral, flattened on slide)

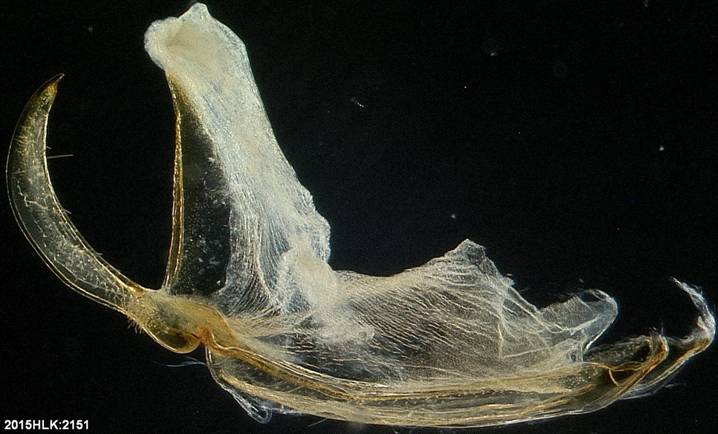

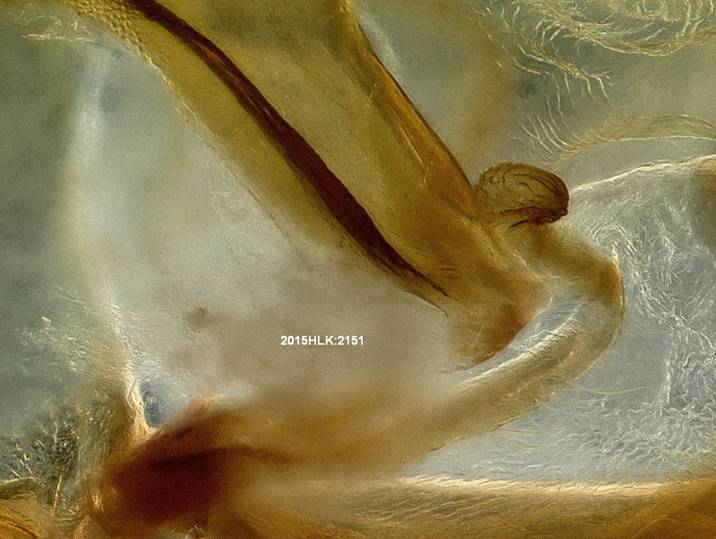

Juxta & Anellus
(lateral)

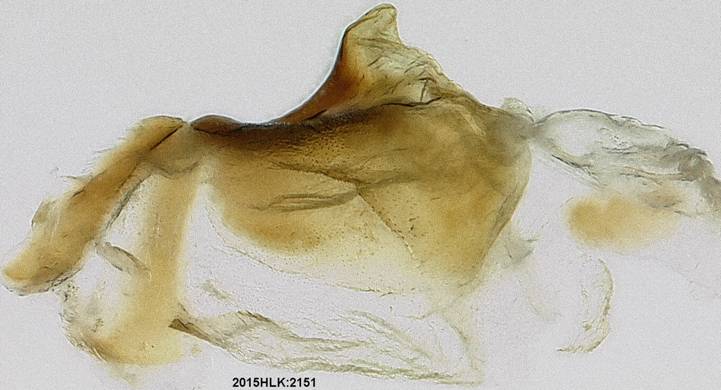

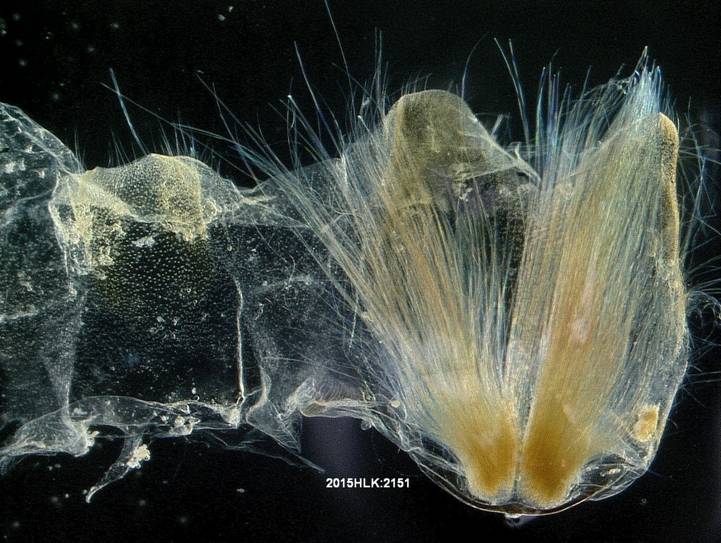

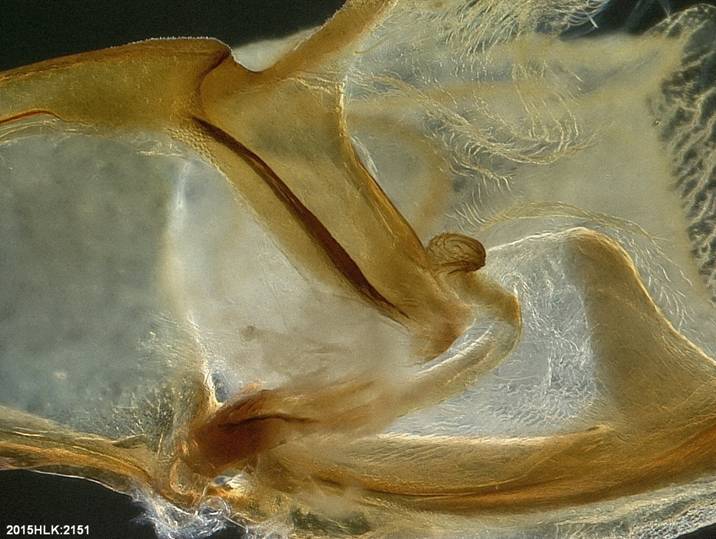

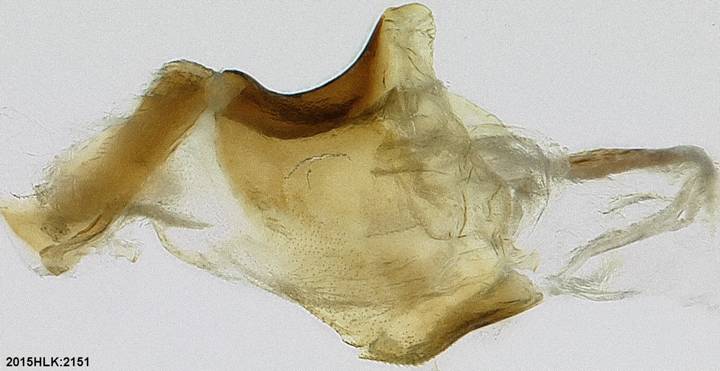

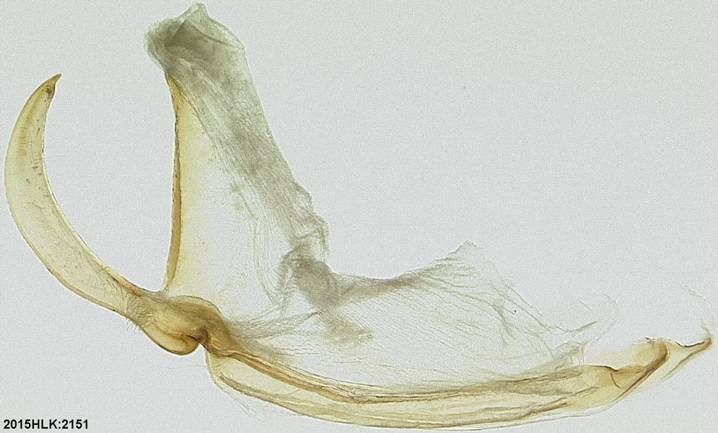

Uncus & Tegumen
(lateral)

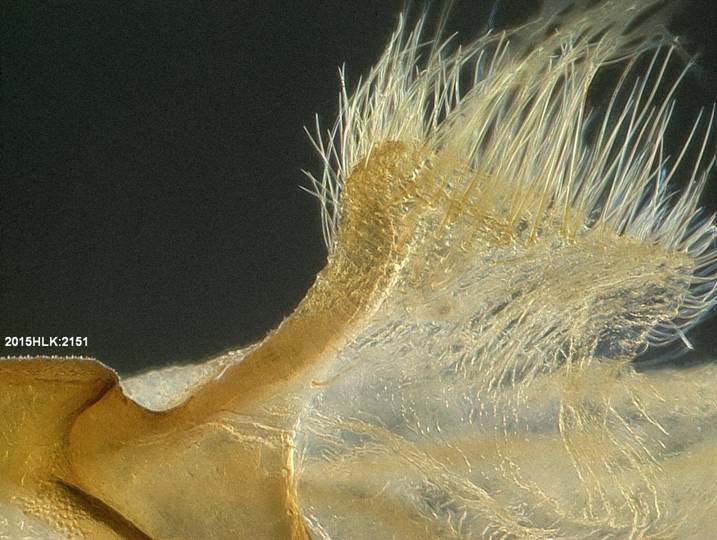

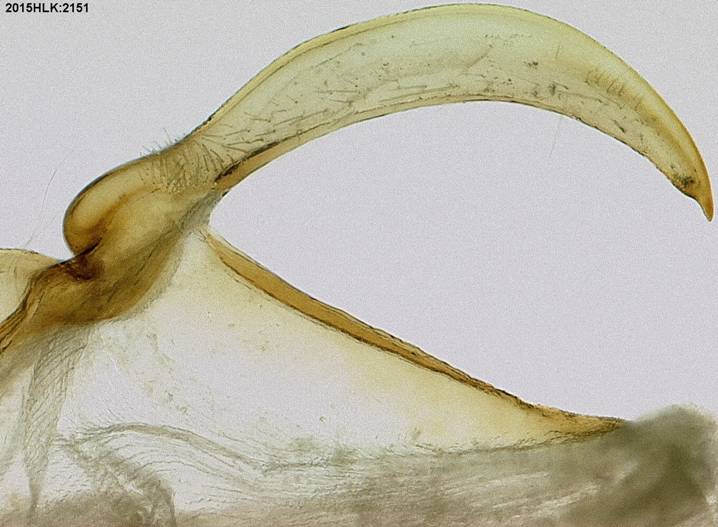

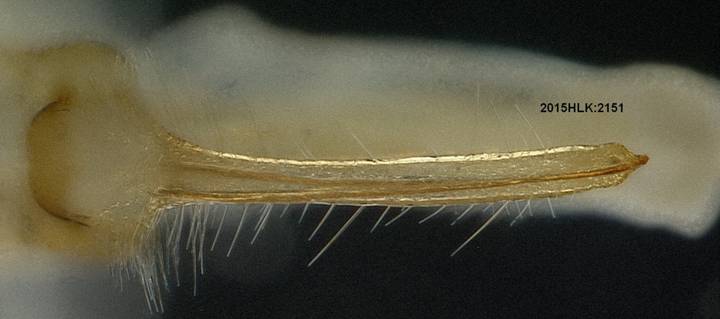

Uncus (lateral)
Uncus (posterior)

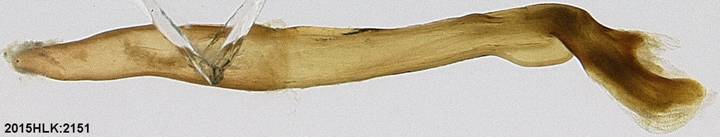

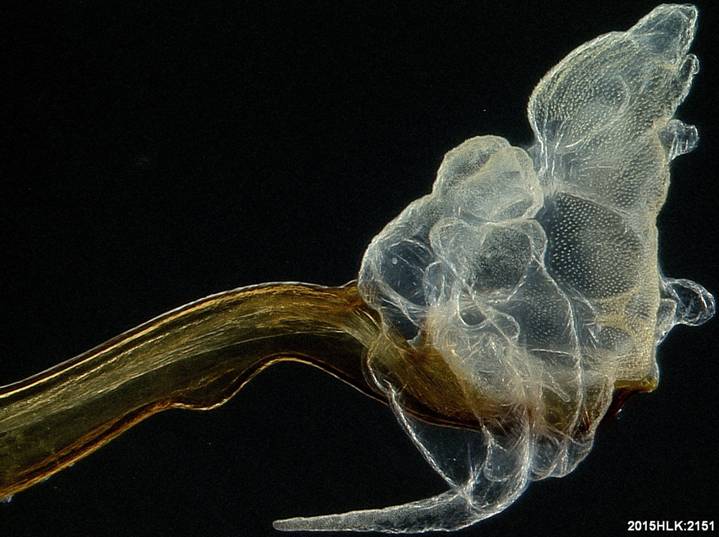

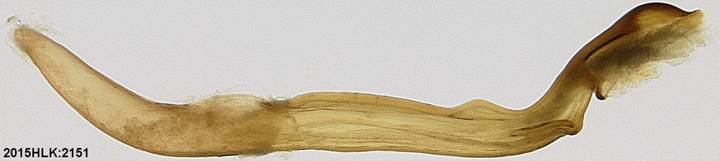

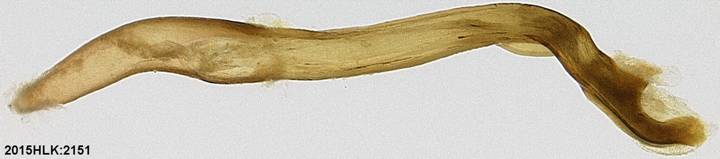

Phallus
Phallus

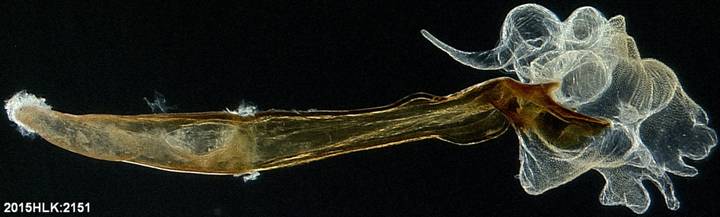

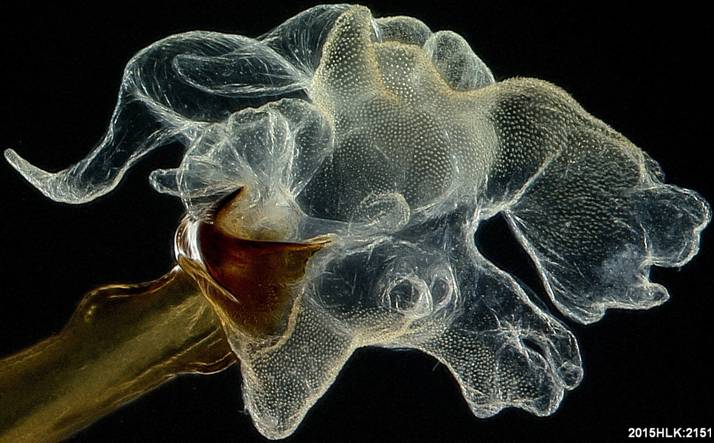

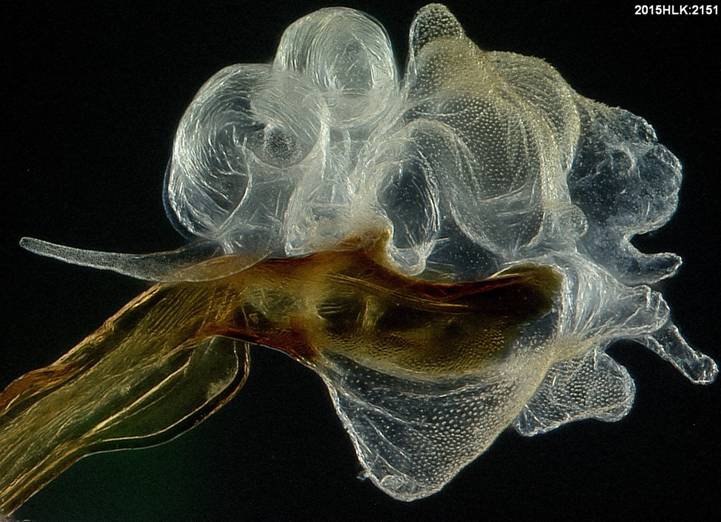

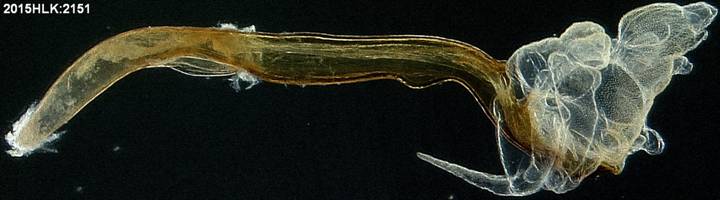

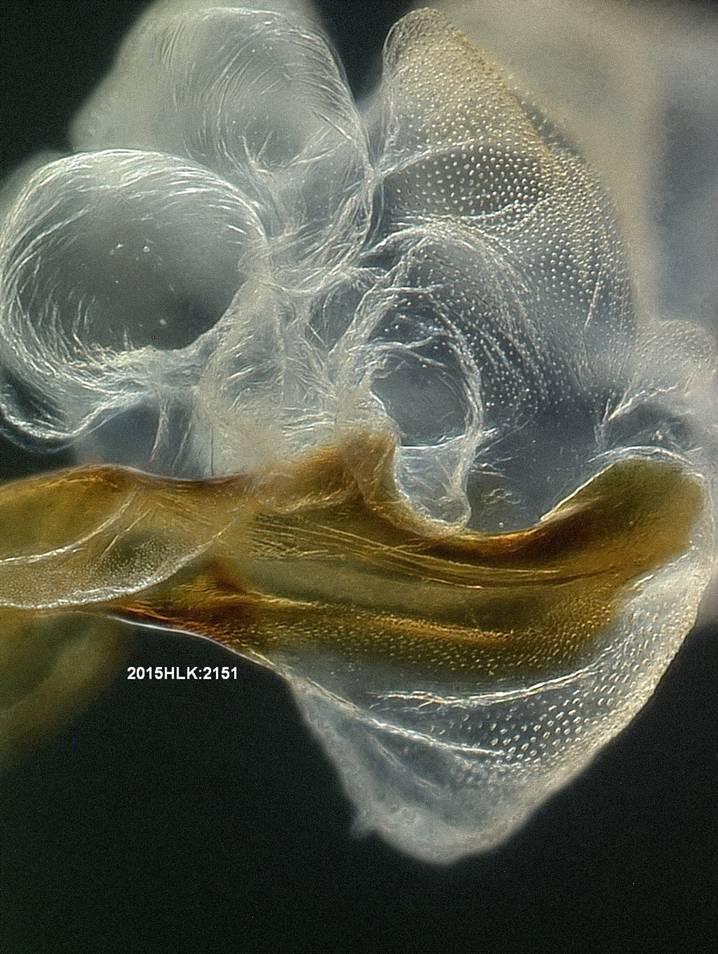

with vesica everted

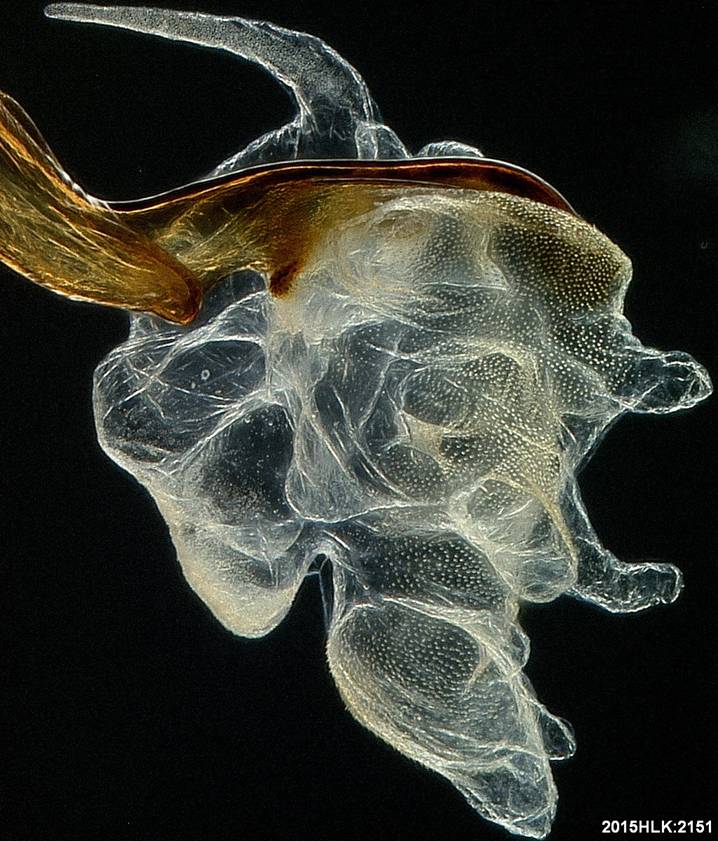

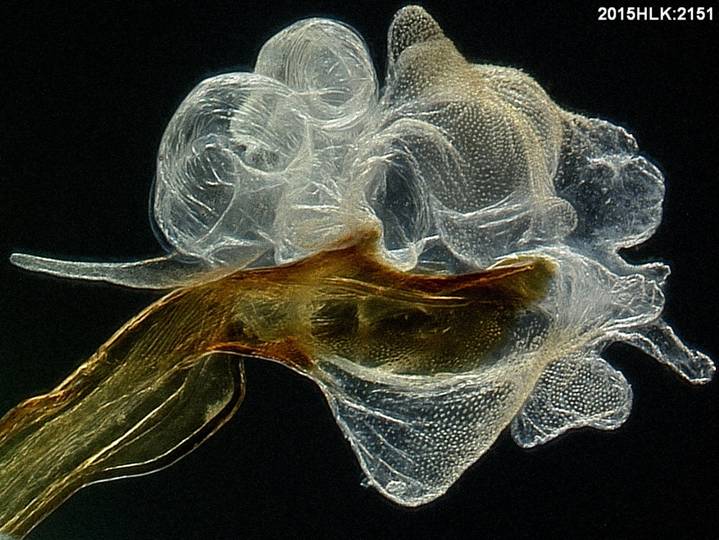

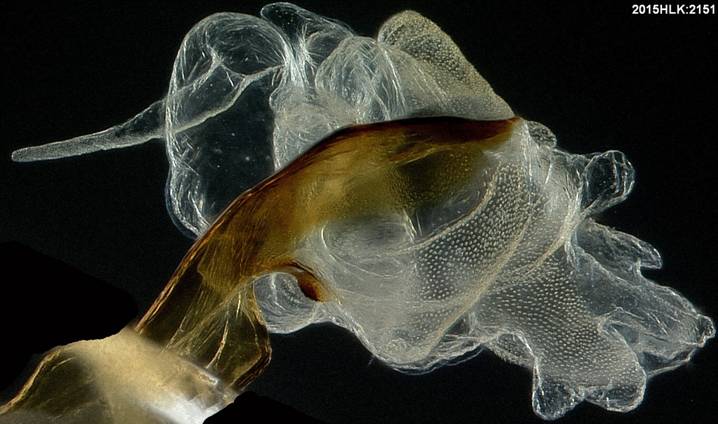

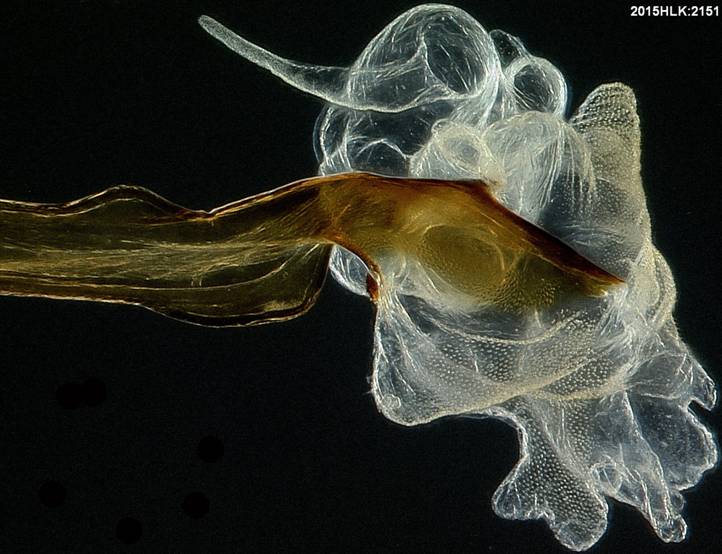

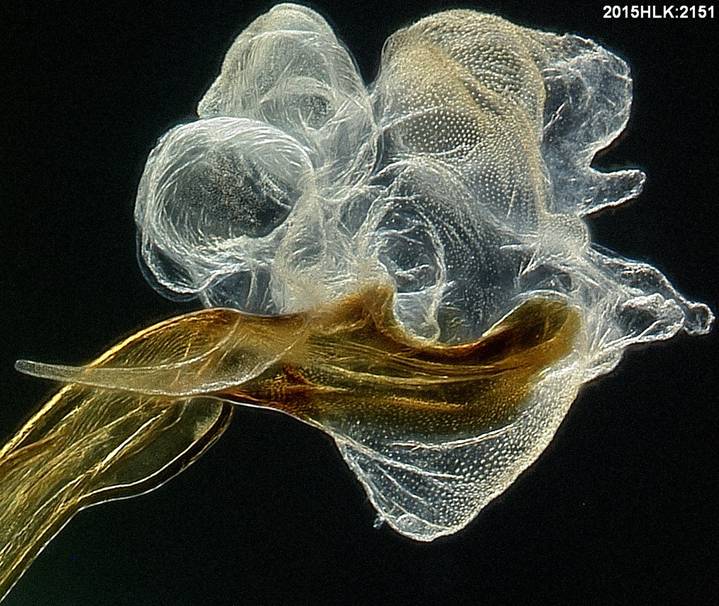

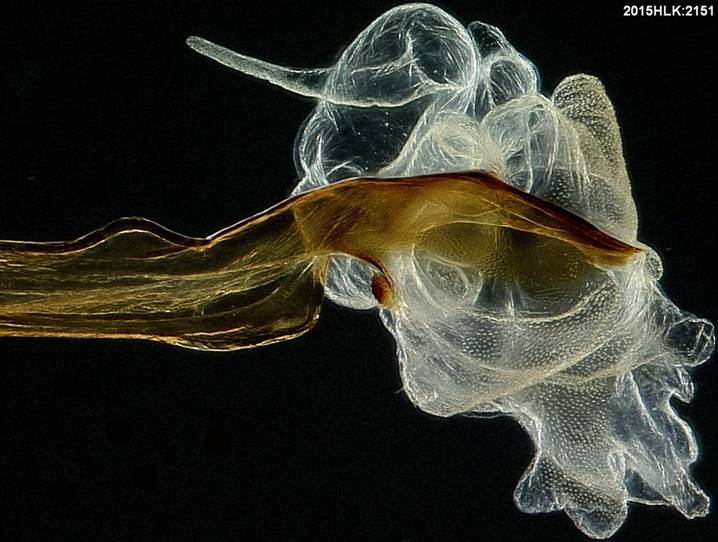

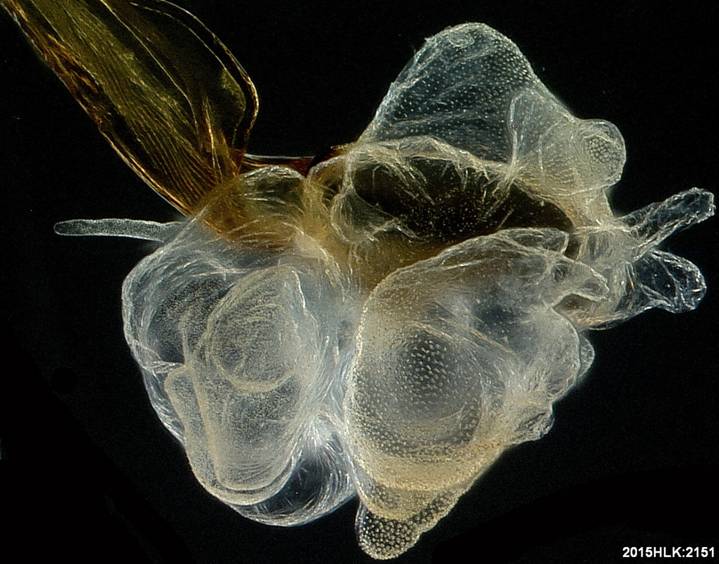

Vesica (with hood above)

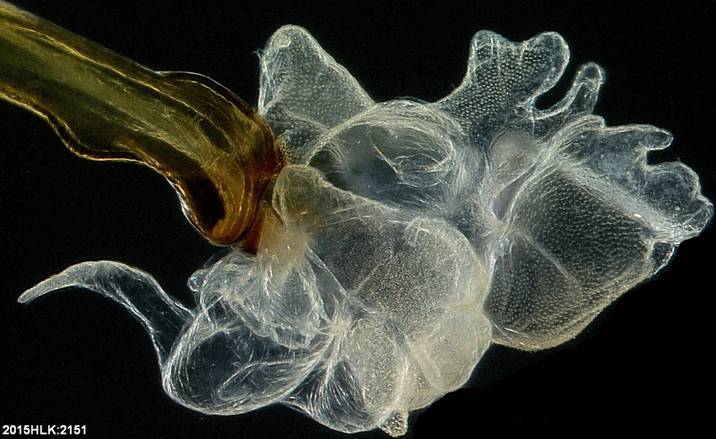

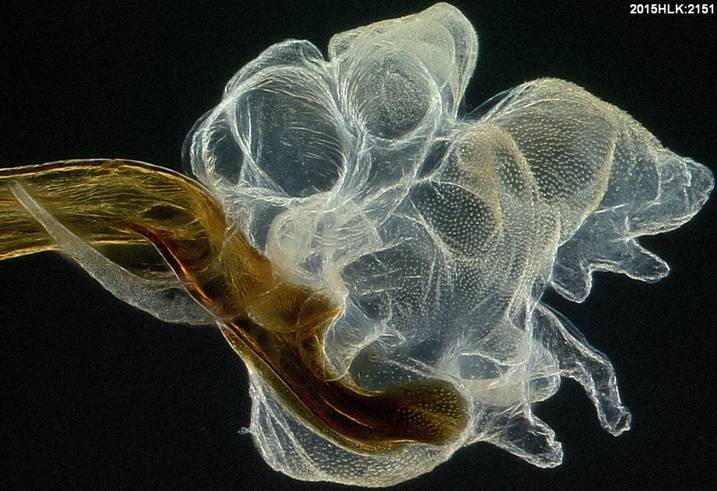

Vesica (lateral, with hood on bottom)

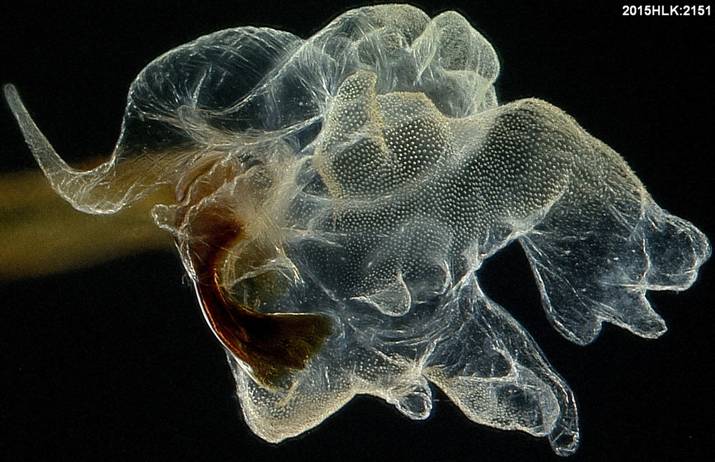

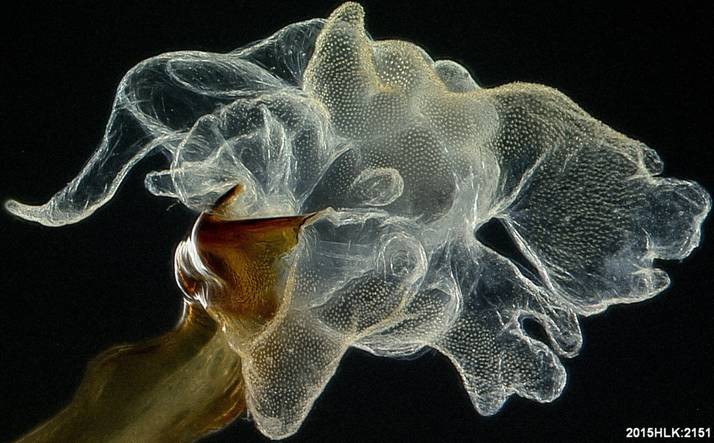

Vesica (with hood below)

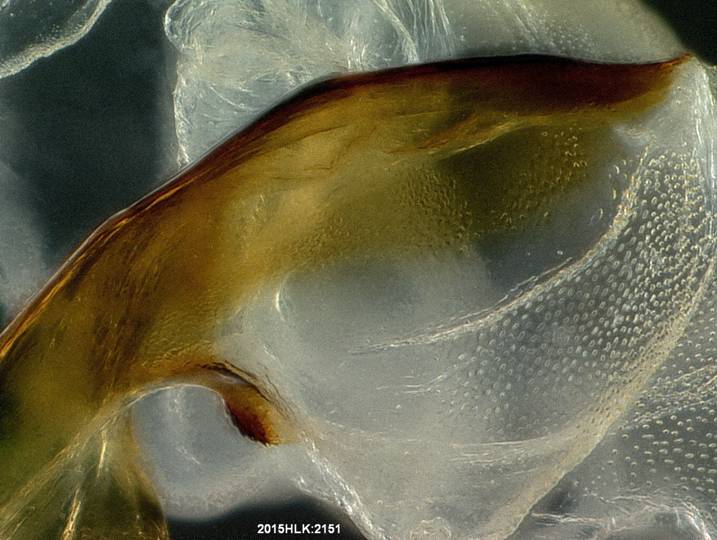

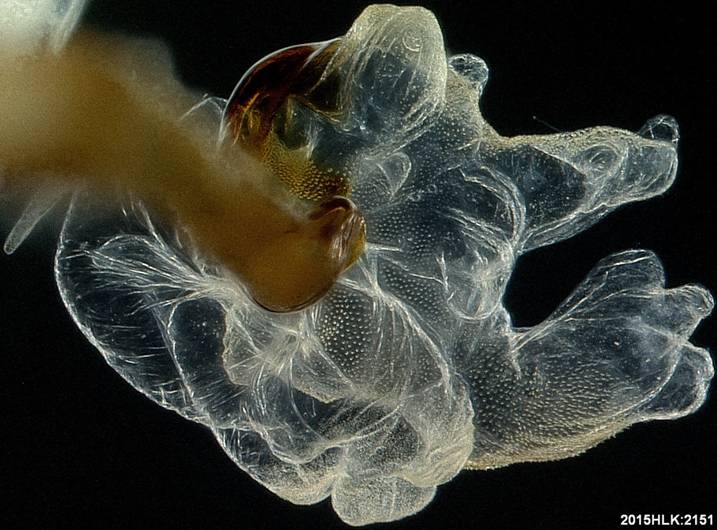

Vesica (lateral, with hood on top)

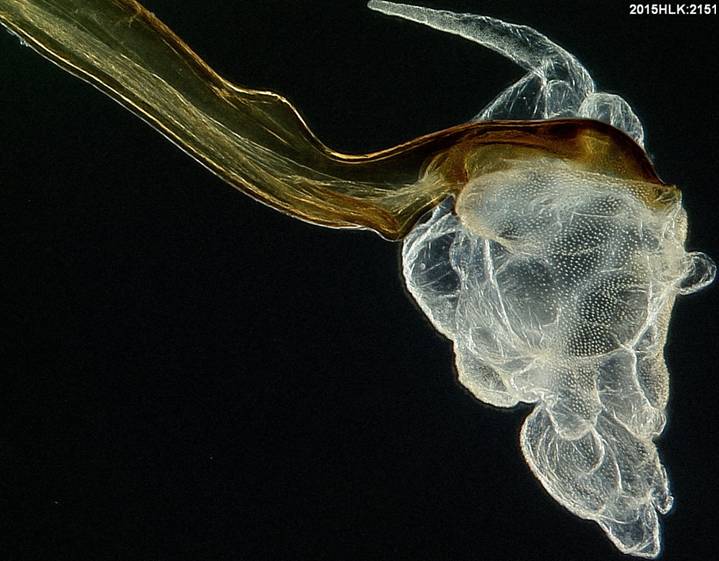

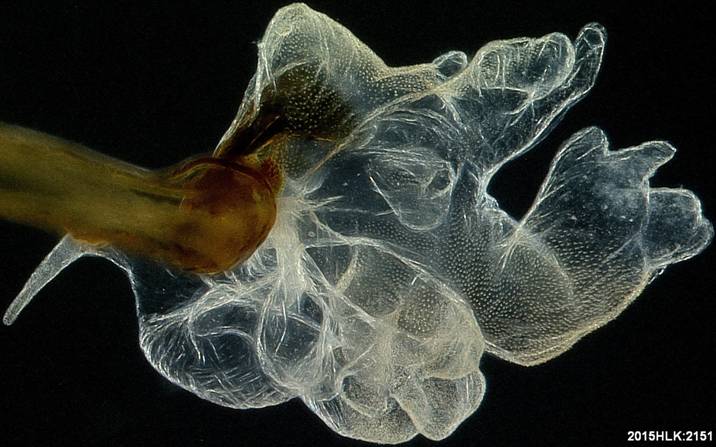

Vesica (anterior side)
Vesica (posterior side)

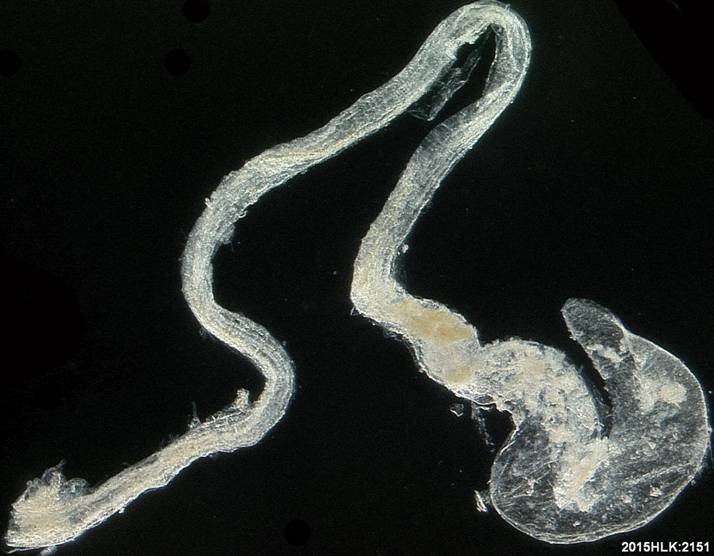

Ductus Ejaculatorius

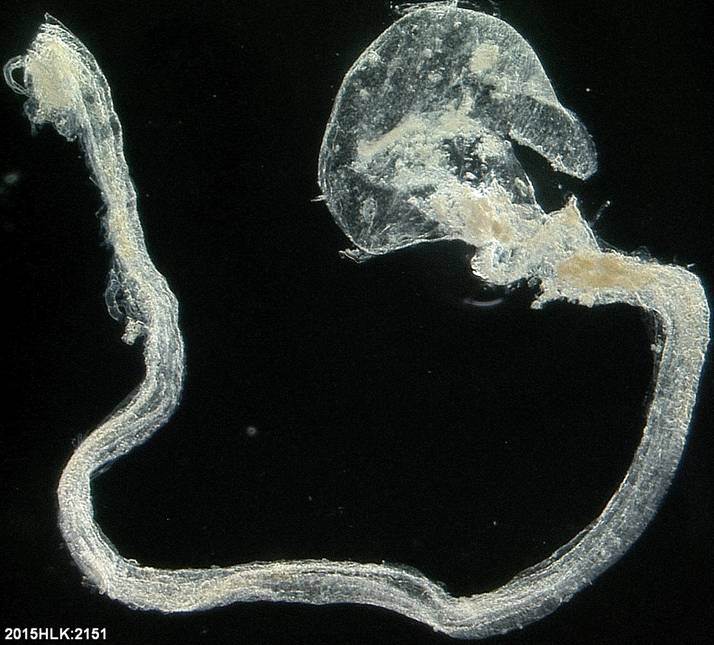

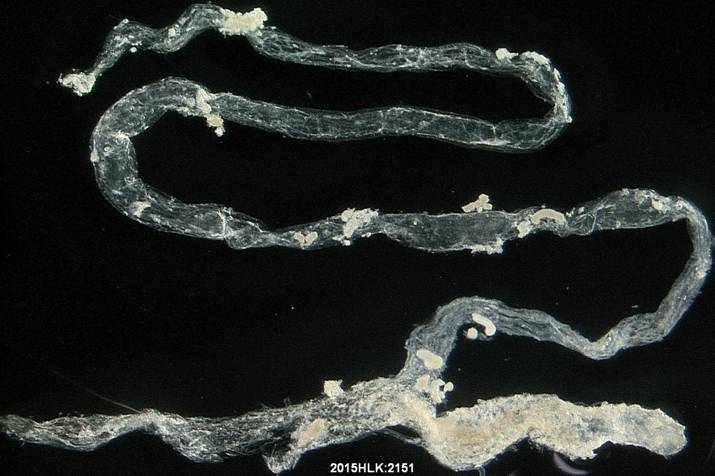

Rectum
and Intestine

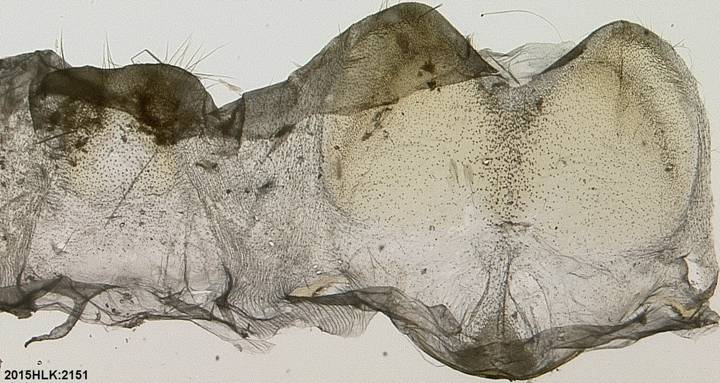

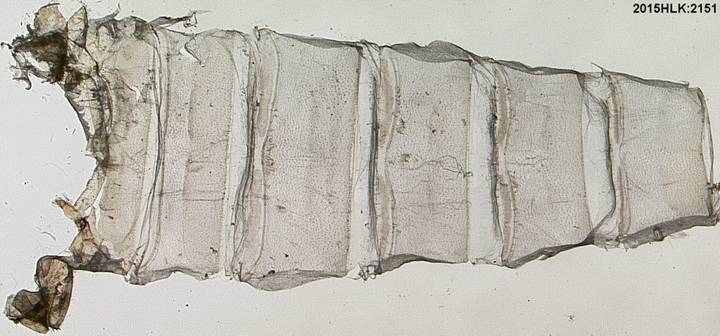

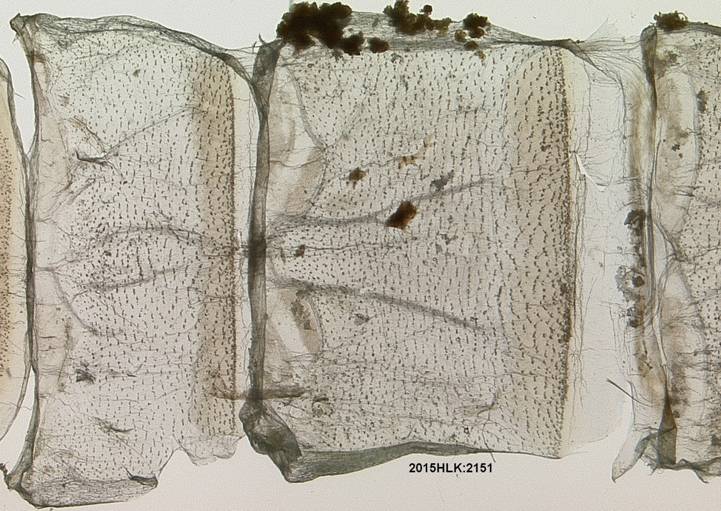

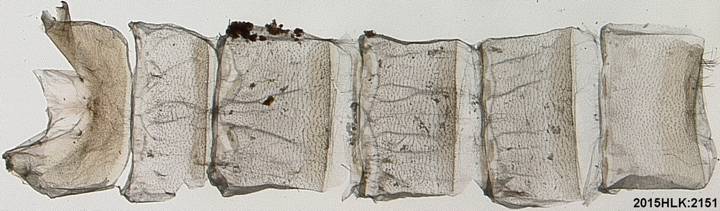

Abdominal
Tergites (excluding terminal segment)
Abdominal
Sternites (excluding terminal segment)
Abdomen
terminal segment (tergite on left, sternite on right)
